This document introduces a dual-channel interface device called 35900E. The device features a Motorola 68331 processor and 1MB RAM memory. It has an input signal voltage range of -18mV to +1.0V and offers a high analog dynamic range and resolution. The device also has good common-mode rejection and thermal drift performance, and maintains RFI immunity in a wide frequency range.

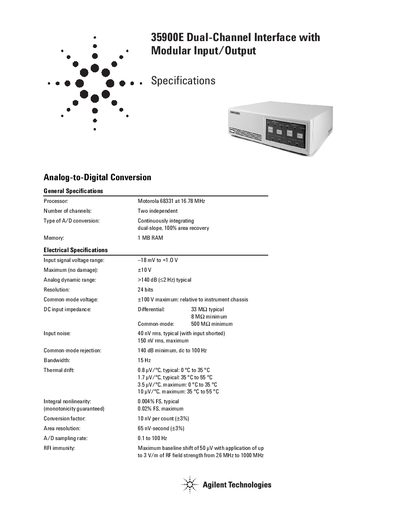

This document provides general specifications for the Agilent 35900E Dual-Channel Interface with Modular Input/Output. Key features include a Motorola 68331 processor running at 16.78 MHz, 1MB of RAM, and a 24-bit analog-to-digital conversion with a sampling rate of 0.1 to 100 Hz. The device supports input signal voltage ranges from 18 mV to +1.0V with a maximum of +10V.
| Line power consumption | 25W |
|---|---|
| Operating temperature range | 5 °C to +40 °C |
The operating temperature range is from 5 °C to +40 °C.
The unit weighs 4.1 kg, which is equivalent to 9 lbs.
It operates on a line voltage ranging from 100 V to 240 V.
