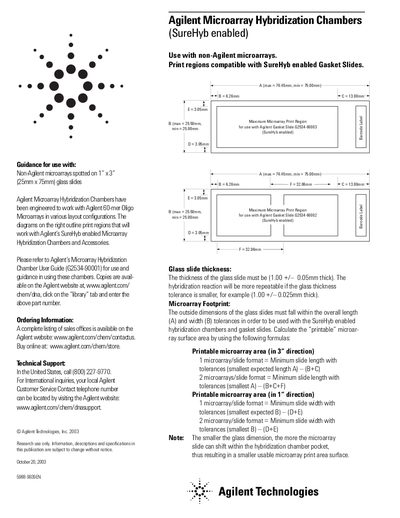

This document introduces the features and usage methods of Agilent Microarray Hybridization Chambers (SureHyb enabled).
This guide provides guidance on using non-Agilent microarrays spotted on 1" x 3" (25mm x 75mm) glass slides with Agilent Microarray Hybridization Chambers. It outlines specific print regions compatible with SureHyb enabled chambers and accessories.
The document details the technical requirements for glass slide thickness (1.00 +/- 0.05mm) and provides formulas to calculate the maximum printable microarray surface area based on slide dimensions and chamber tolerances.
| Glass slide thickness requirement | 1.00 +/- 0.05mm |
|---|---|
| Compatible slide size | 1" x 3" (25mm x 75mm) |
| Maximum slide length A | 76.45mm |
| Minimum slide length A | 75.00mm |
| Maximum slide width B | 25.50mm |
| Minimum slide width B | 25.00mm |
The glass slide thickness must be 1.00 +/- 0.05mm thick.
Yes, they can be used if spotted on 1" x 3" glass slides and meet the footprint tolerances.
