Agilent ChemStation software release B.02.01 provides new User Interface design and new tree- and table-based navigation. It provides fast and flexible Data Handling within various ChemStation views. It also improves data review and reprocessing capabilities using the Data Analysis Navigation Table.

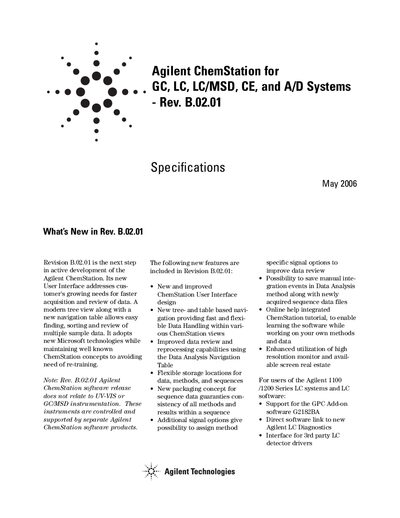

The Agilent ChemStation manual for revision B.02.01 describes the new user interface, data handling improvements, and additional signal options for GC, LC, LC/MSD, CE, and A/D systems. It lists supported instruments, firmware requirements, and optional add‑on modules.
The document also provides minimum PC specifications, maximum numbers of instruments and modules that can be configured, and hardware interface options such as GPIB, USB/GP‑IB, and LAN cards. Guidance on networking, printers, and compliance features is included.
| Minimum CPU | Pentium V, 1.5 GHz |
|---|---|
| Minimum RAM | 512 MB |
| Minimum hard‑disk | 40 GB |
| Minimum display | SXGA (1280 × 1024) |
| Maximum instruments per PC | 4 |
| Maximum modules per PC | 18 |
Up to four instruments can be configured on one ChemStation PC.
The G1315C detector requires firmware revision B.01.02.
Agilent 82350A or 82350B PCI high‑performance GPIB interface cards can be used.
