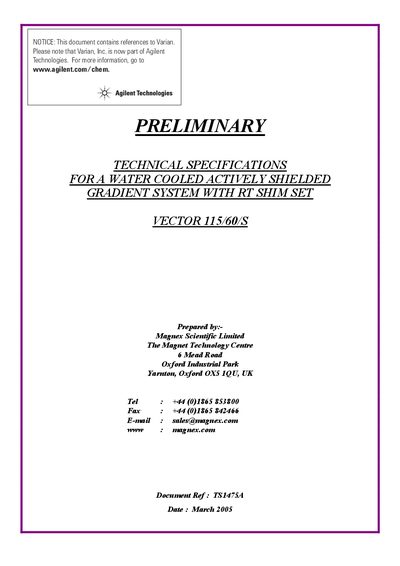

This file is the technical specifications for the VECTOR 115/60/S water cooled active shielded gradient system. The system uses a fully optimized X, Y and Z coil configuration and is designed for 120mm or larger room temperature bore superconducting magnets and gradient systems.
This document provides technical specifications for the VECTOR 115/6WS, a fully self-shielded gradient system designed to suit 120mm room temperature bore superconducting magnets. The system features optimized X, Y, and Z coil configurations made from high-quality copper plates or heavy-duty strip.
| Gradient Strength (X/Y/Z) | 5.0mT/m/A +5% |
|---|---|
| Peak voltage | <300V |
| Peak current | 200A |
The RMS current must be less than 50A indefinitely when all axes operate together.
The system requires a volumetric flow rate of 1.2 litres/min.
The safe operating peak current is 200A.
