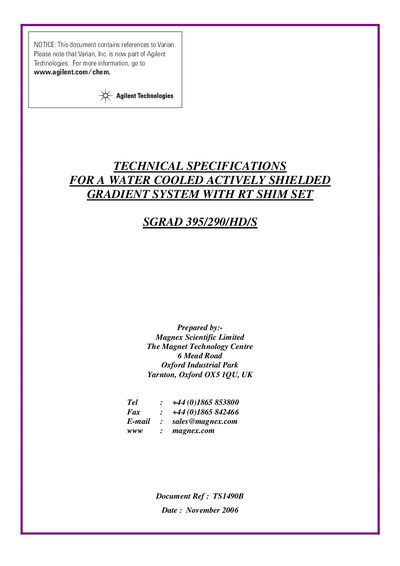

SGRAD 395/290/HD/S is a fully self-shielded gradient system designed to suit ≥400mm room temperature bore superconducting magnets and gradient systems. The design incorporates fully optimised X, Y and Z coil configurations. The X and Y coils are made from the highest quality copper plates machined with CNC technology. The Z coil is wound from heavy copper wire to ensure the minimum of residual eddy currents and the minimum of coil losses.
This document provides technical specifications for the SGRAD 395/290/HD/S, a fully self-shielded gradient system designed to suit room temperature bore superconducting magnets. The system features optimized X, Y, and Z coil configurations made from high-quality copper plates or heavy-duty strip, vacuum impregnated to minimize vibration.
| Total length | 395mm +3mm / 290mm +0.5mm |
|---|---|
| Gradient Strength (X/Y/Z) | 0.33mT/m/A +5% |
| Peak internal temperature | <60°C |
| Volumetric flow rate | 6.6 litres/min |
The total length is 395mm for the 395 model and 290mm for the 290 model.
The volumetric flow rate is 6.6 litres/min.
