Philips TEA1111A Speech Circuit with Dialler Interface Datasheet

TEA1111A is a speech circuit with dialler interface, regulated supply and earpiece volume control

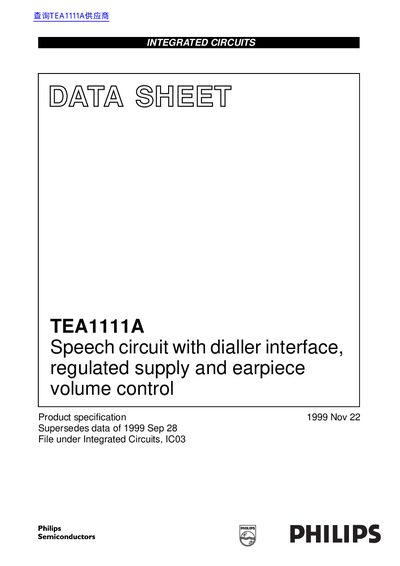

Philips TEA1111A Speech Circuit with Dialler Interface Datasheet - cover page
Brand
Philips
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
24
File format
PDF
File size
136 KB
Published
04 July, 2012
Updated
30 September, 2023
MD5 checksum
CCABF443A39EF0B04C14D256F7CC23BC

About this manual

The Philips TEA1111A is a bipolar integrated circuit designed to perform all speech and line interface functions required in fully electronic telephone sets. It handles electronic switching between speech and dialling modes while operating at low DC line voltages down to 1.5 V.

Key features include an internal current consumption of approximately 1.4 mA, a regulated supply voltage (Vpp) of 3.25 V for peripherals such as LCD modules and microcontrollers, and adjustable gain for both microphone and earpiece amplifiers. The device also provides AGC line loss compensation and LED control output for on-hook/off-hook status indication.

What's inside

  • Features
  • Applications
  • General Description
  • Quick Reference Data
  • Ordering Information
  • Block Diagram
  • Pinning
  • Functional Description
  • Supply Configuration
  • Regulated Supply Point

Specifications

Line voltage operating range (normal)3.7 - 4.3 V
Regulated supply voltage (Vpp)2.95 - 3.6 V
Typical microphone amplifier gain43.2 - 45.2 dB
Typical earpiece amplifier gain26.4 - 28.4 dB
Volume control range (earpiece)-14.5 dB

Frequently asked questions

What are the main applications of the TEA1111A?

It is used in line powered telephone sets with LCD modules, cordless telephones, fax machines, and answering machines.

What is the minimum DC line voltage for operation?

The IC operates at a line voltage down to 1.5 V DC, though performance may be reduced in this low voltage area.

How is the regulated supply voltage adjusted?

The voltage at pin REG can be increased by connecting a resistor between pins REG and SLPE or decreased by connecting it between pins REG and LN.
