The TEA1210TS is a high-efficiency, high-current DC/DC converter that features internal very low RDSon power MOSFETs, up-or-down conversion, startup from 1.85V input voltage, adjustable output voltage, high efficiency over a large load range, 600kHz switching frequency, low quiescent power consumption, synchronizing with external clock, two selectable current limits for efficient battery use in case of dynamic loads, up to 100% duty cycle in down mode, undervoltage lockout, and shut-down function.

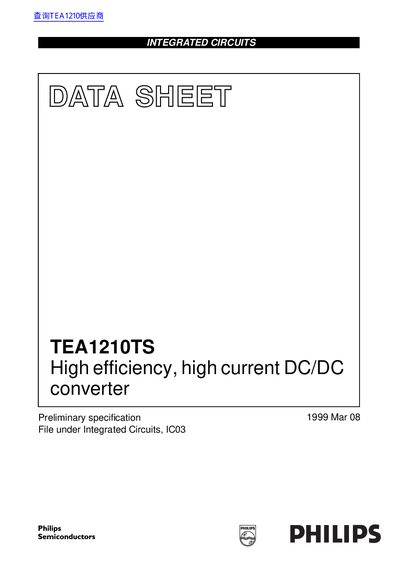

The Philips TEA1210TS is a fully integrated DC/DC converter designed for high efficiency and high current applications. It features internal low Rds(on) power MOSFETs and supports both up-or-down conversion modes. The device operates at a 600 kHz switching frequency and includes features such as adjustable output voltage, undervoltage lockout, and a shut-down function.
| Switching frequency | 600 kHz |
|---|---|
| Package type | SSOP16 |
| Operating temperature range | -40 to +80 °C |
| Maximum continuous current | 1.8 A |
| Start-up input voltage | 1.85 V |
The device operates at a 600 kHz switching frequency.
The maximum continuous current is 1.8 A at Tamb = 60 °C.
The start-up input voltage is 1.85 V when the load current is less than 200 mA.
