The TEA1206T is a high-efficiency DC/DC converter from Philips. It features low startup voltage, adjustable output voltage, and high conversion efficiency.

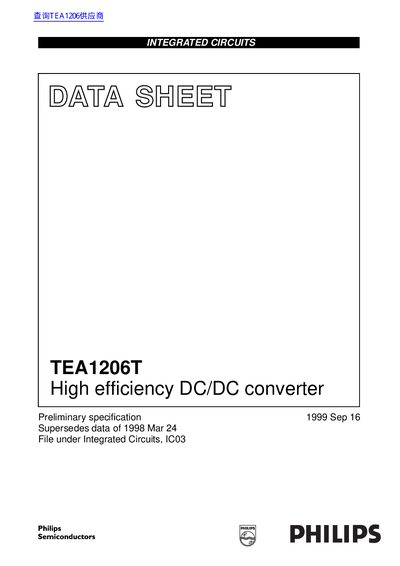

The document is a preliminary specification datasheet for the Philips TEA1206T, a fully integrated high-efficiency DC/DC converter circuit. It supports both up-conversion and down-conversion modes with a switching frequency of 600 kHz (typical) and can handle continuous average currents up to 1 A.
| Continuous average current | 1 A |
|---|---|
| Switching frequency (typical) | 600 kHz |
| Start-up voltage (min) | 1.8 V |
| Package type | SOT96-1 |
| Output voltage range (up mode) | 2.80 - 5.50 V |
| Output voltage range (down mode) | 1.25 - 5.50 V |
| Current limit (NFET up mode) | 0.5 - 5.0 A |
| Maximum continuous current (pin 4) | 1.0 A |
The device can start up from a 1.8 V input.
Yes, it synchronizes to an external clock frequency between 9 and 20 MHz.
