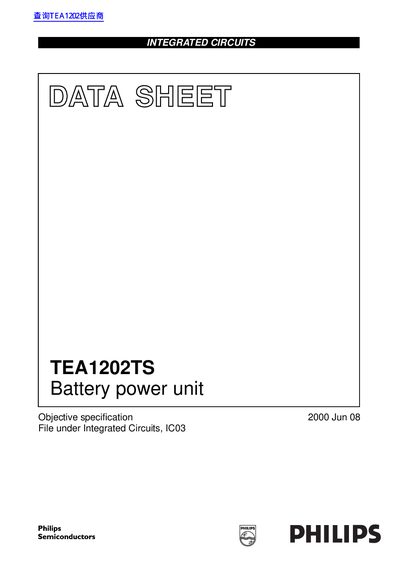

TEA1202TS is an integrated circuit from PHILIPS. It is a fully integrated battery power unit, including complete DC/DC converter circuit, two Low DropOut voltage regulators (LDOs) and a battery low detector.
The Philips TEA1202TS is a fully integrated battery power unit designed for use with 1-cell Nickel-Cadmium (NiCd), Nickel Metal Hybrid (NiMH), or Lithium-Ion batteries. It combines a high-efficiency DC/DC converter, two Low Dropout (LDO) voltage regulators, and a low battery detector into a single IC.
The device operates at a switching frequency of 600 kHz and supports both upconversion and downconversion modes. It includes internal power MOSFETs with low on-resistance and features synchronous rectification to maximize efficiency. The unit is suitable for applications such as cellular phones, cordless phones, and PDAs.
| Switching frequency | 600 kHz |
|---|---|
| Dropout voltage | 75 mV |
| Maximum continuous current | 1.0 A |
| Low battery detection level | 0.90 V |
| Package type | SSOP20 |
It is configurable for 1, 2, or 3-cell NiCd or NiMH batteries and 1 Lithium-Ion battery.
Yes, it guarantees start-up from a 1-cell NiCd or NiMH battery even with a load current.
The dropout voltage is 75 mV at 50 mA.
