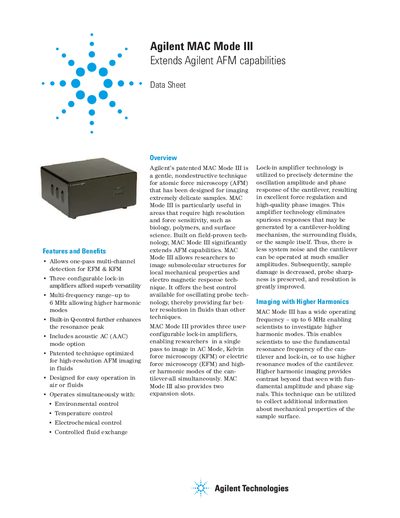

Agilent MAC Mode III is a patented technique for atomic force microscopy (AFM) that has been designed for imaging extremely delicate samples in fluids.
Agilent MAC Mode III is a patented, nondestructive technique designed for imaging delicate samples in air or fluids. It utilizes three configurable lock-in amplifiers to allow one-pass multi-channel detection for Electric Force Microscopy (EFM) and Kelvin Force Microscopy (KFM). The system supports a wide frequency range up to 6 MHz, enabling the investigation of higher harmonic modes for improved resolution and contrast.
| Frequency range | 200Hz to 6MHz |
|---|---|
| Lock-in amplifier modules | Three |
| Output bandwidth | 80Hz to 20kHz |
| Frequency resolution | 0.009Hz |
| Drive amplitude resolution | 16-bit |
| Drive phase control resolution | 12-bit |
| Q-control bandwidth | 40kHz |
| Additional interface slots | Two |
MAC Mode III allows one-pass multi-channel detection for EFM and KFM simultaneously.
The system supports a frequency range up to 6 MHz.
Yes, the system includes a built-in Q-control feature to enhance the resonance peak.
Yes, it is a fully integrated, self-contained solution that eliminates the need for external boxes.
