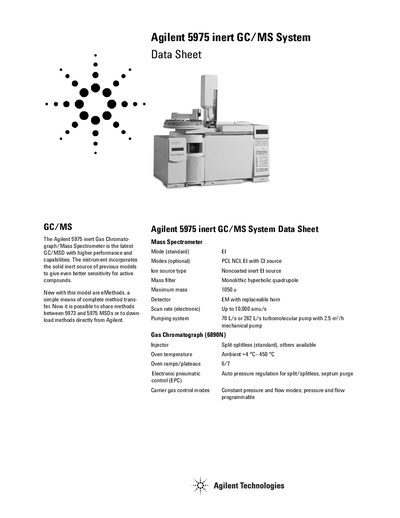

Agilent 5975 inert GC/MS System Data Sheet is the latest GC/MSD with higher performance and capabilities from Agilent.
The Agilent 5975 inert Gas Chromatograph/Mass Spectrometer is a high-performance instrument featuring a solid inert source for improved sensitivity with active compounds. It incorporates eMethods technology, allowing for complete method transfer between 5973 and 5975 MSDs and direct downloading from Agilent.
The system includes a Mass Spectrometer with a noncoated inert electron impact source, a monolithic hyperbolic quadrupole mass filter, and a maximum mass of 1050 u. It is paired with an Agilent 6890N Gas Chromatograph featuring electronic pneumatic control (EPC) for carrier gas control.
| Mass filter | Monolithic hyperbolic quadrupole |
|---|---|
| Detector | EM with replaceable horn |
| Pumping system | 70 L/s or 262 L/s turbomolecular pump with 2.5 m?/h mechanical pump |
| Dimensions (GC/MS) | 88 cm (w) x 56 cm (d) x 50 cm (h) |
| Weight (GC/MS) | 81 kg or 96 kg (depending on configuration) |
The oven temperature ranges from Ambient +4 °C to 450 °C.
The dimensions are 88 cm (w) x 56 cm (d) x 50 cm (h).
