Agilent Zorbax Bio Series GF-250 Datasheet

This product is a notebook computer that uses an Intel Core i5-1235U processor, 16GB of memory, 512GB of solid state drive, supports WiFi6 and Bluetooth 5.0, and is equipped with the Windows 11 operating system.

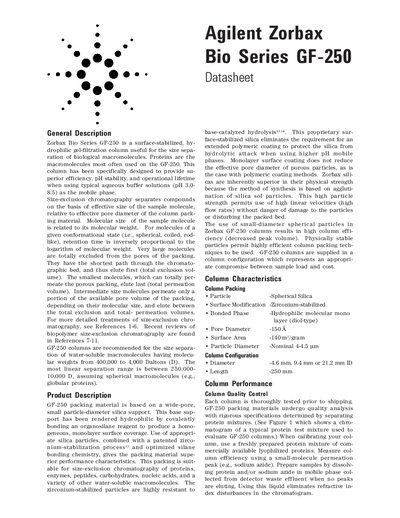

Agilent Zorbax Bio Series GF-250 Datasheet - cover page
Brand
Agilent
Document type
Datasheet
Language
English
Pages
4
File format
PDF
File size
116 KB
Published
04 July, 2012
Updated
30 September, 2023
Model
GF-250
MD5 checksum
959682FF8E8D89FC7E0199105E8DB2AC

About this manual

The Agilent Zorbax Bio Series GF-250 is a surface-stabilized, hydrophilic gel-filtration column designed for the size separation of water-soluble macromolecules, particularly proteins. It utilizes wide-pore, small particle-diameter silica support rendered hydrophilic by covalently bonding an organosilane reagent to produce a homogeneous monolayer surface coverage.

This column is specifically engineered to provide superior efficiency, pH stability, and operational lifetime when using typical aqueous buffer solutions with a pH range of 3.0 to 8.5. The zirconium-stabilized particles are highly resistant to base-catalyzed hydrolysis, eliminating the need for extended polymeric coatings often required in other gel-filtration media.

What's inside

  • General Description
  • Product Description
  • Column Characteristics
  • Column Performance
  • Stability
  • Speed
  • Recovery
  • Safety Considerations
  • Operational Guidelines
  • Mobile Phase Selection

Specifications

Molecular Weight Range400,000 to 4,000 Daltons (D)
Linear Separation Range250,000-10,000 D
pH Stability Range3.0 - 8.5
Particle DiameterNominal 4-4.5 µm
Surface Area140 m²/gram
Maximum Flow Rate3 mL/min
Maximum Temperature40°C

Frequently asked questions

What is the recommended flow rate for GF-250 columns?

Recommended flow rates are from 0.5-3.0 mL/min, typically 1.0 mL/min.

Can GF-250 columns be used at high pH?

Yes, the columns may be used for short periods at pH 8.5 due to zirconia stabilization.

What is the typical protein recovery from GF-250 columns?

Protein recoveries are typically 85-100% of the total material applied to the column.

How should a new GF-250 column be prepared before use?

The column must be flushed with at least 10 column volumes (120 mL) of new buffer.
