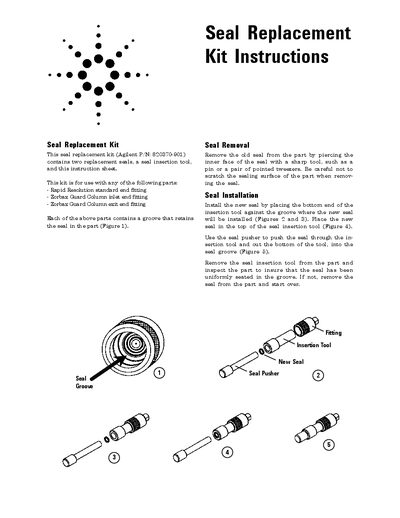

This document is the instruction manual of Agilent product Seal Replacement Kit.
This document provides instructions for the Agilent Technologies Seal Replacement Kit, Part Number 820370-901. The kit includes two replacement seals, a seal insertion tool, and an instruction sheet designed to assist with maintenance tasks.
The manual details procedures for removing old seals from specific end fittings without damaging the sealing surface and installing new seals using the provided insertion tool. It specifies compatibility with Zorbax Guard Column inlet and exit end fittings as well as Rapid Resolution standard end fittings.
The kit contains two replacement seals, a seal insertion tool, and an instruction sheet.
Remove the old seal by piercing the inner face of the seal with a sharp tool, such as a pin or pointed tweezers.
