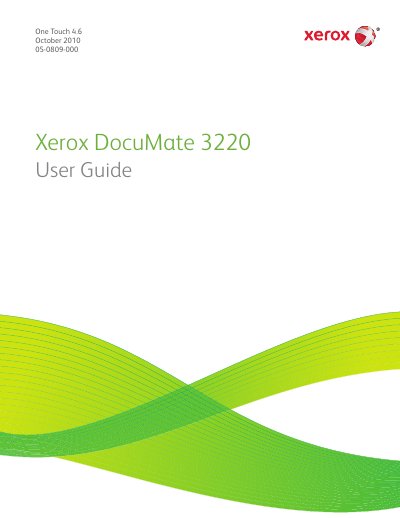

This is a user guide for the Xerox DocuMate 3220 One Touch 4.6
The Xerox DocuMate 3220 One Touch is a scanning device designed for quickly scanning stacks of documents using an Automatic Document Feeder (ADF) or single items on a flatbed glass. This guide covers system requirements, installation of the scanner and bundled software, and configuration of the One Touch button panel.
| Scanning resolution | 600 dpi |
|---|---|
| Bit depth | 24-bit color, 8-bit grayscale, 1-bit line art/text |
| Maximum flatbed item size | 8.5 x 11.69 inches (216 x 297 mm) |
| ADF Capacity | 50 sheets (20 lb paper) |
| Scanning Speed | Up to 20 pages per minute @ 200 dpi B&W |
| Interface | USB 2.0 High Speed |
| Operating temperature | 50°–95° F (10°–35° C without condensation) |
The scanner requires an IBM-compatible Pentium 4 PC or AMD equivalent with a DVD-ROM drive, a USB port, and Windows XP, Vista, or 7.
The maximum flatbed item size is 8.5 x 11.69 inches (216 x 297 mm).
The scanner can scan up to 20 pages per minute at 200 dpi in black and white.
