The SAA4995WP is an integrated circuit with features such as horizontal sample rate conversion and dynamic sample rate conversion.

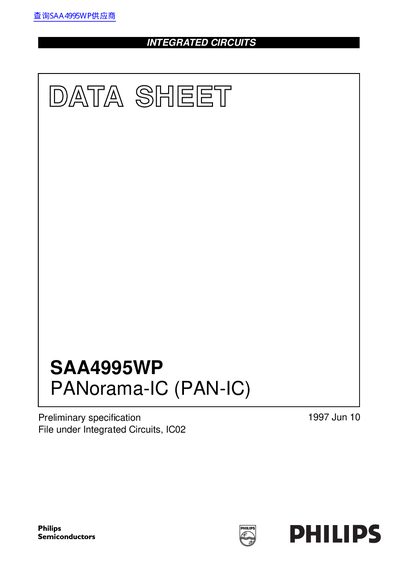

The document is a preliminary specification datasheet for the Philips SAA4995WP, also known as the PANorama-IC (PAN-IC). This integrated circuit is designed to perform linear horizontal sample rate conversion in both zoom and compress directions, with a conversion factor between 0.5 and 2.
| Supply voltage | 4.5 to 5.5 V |
|---|---|
| Operating clock frequency | 33 MHz max |
| Operating ambient temperature | 0 to 70 °C |
| Package type | PLCC44 plastic leaded chip carrier |
| Sample rate conversion factor | 0.5 to 2 (in 384 steps) |
The device supports a sample rate conversion factor between 0.5 and 2.
