Philips SAA4996H Integrated Circuit Datasheet

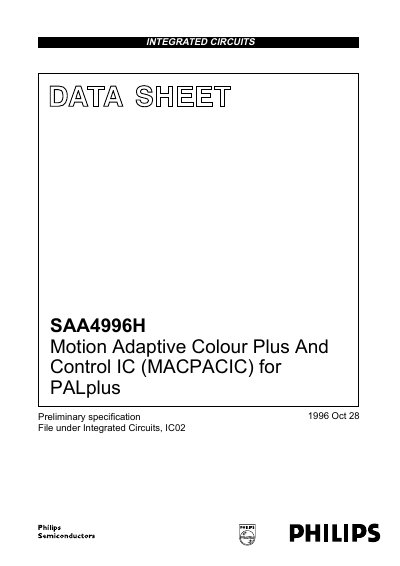

This is a preliminary specification sheet for SAA4996H Motion Adaptive Colour Plus And Control IC (MACPACIC) for PALplus.

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 60
File format: PDF
File size: 267 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: 15F5BA8371C81F0EAD4E4B02A02DC3CF
PDF: Philips SAA4996H Integrated Circuit Datasheet PDF

About this manual

The Philips SAA4996H is an integrated circuit designed for Motion Adaptive Colour Plus (MACP) processing in PALplus colour TV receivers. It functions as a dedicated field comb filter technique to decode transmitted PALplus video signals. The device can be used in conjunction with the SAA4997H Vertical Reconstruction IC or in a stand-alone configuration with only two field memories.

What's inside

Features
General Description
Quick Reference Data
Ordering Information
Block Diagrams
Pinning
Functional Description
DC Characteristics
AC Characteristics
Package Outline

Specifications

Digital supply voltage	4.75 to 5.25 V
Operating ambient temperature	0 to +70 °C
Die temperature	+125 °C
Package type	QFP100

Frequently asked questions

What is the maximum operating ambient temperature for the SAA4996H?

The maximum operating ambient temperature is +70 °C.

What is the maximum die temperature for the SAA4996H?

The maximum die temperature is +125 °C.

What is the maximum digital supply voltage for the SAA4996H?

The maximum digital supply voltage is 5.25 V.

Download PDF (267 KB)
