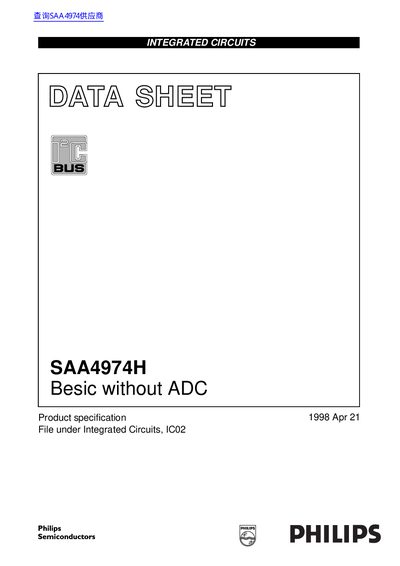

This document is a specification sheet for Philips Semiconductors SAA4974H Besic without ADC. The product features the following characteristics: Field rate up-conversion (50 to 100 Hz or 60 to 120 Hz); 4:1:1 digital input; Digital Colour Transient Improvement (DCTI); Digital luminance peaking; Triple 10-bit Digital-to-Analog Converter (DAC); Memory control.
The SAA4974H is a video processing integrated circuit designed for field rate up-conversion applications, such as converting 50 Hz to 100 Hz or 60 Hz to 120 Hz. It provides a digital YUV 4:1:1 input interface and analog YUV output, incorporating video enhancing features like Digital Colour Transient Improvement (DCTI) and digital luminance peaking.
| Analog supply voltage | 3.15 to 3.45 V |
|---|---|
| Digital supply voltage | 3.0 to 3.6 V |
| Operating ambient temperature | -20 to +70 °C |
| Total power dissipation | 0.5 W |
| ROM size | 16 kbyte |
| RAM size | 256 byte |
It supports up-conversion from 50 to 100 Hz or from 60 to 120 Hz.
It provides a digital YUV 4:1:1 input interface.
No, this specific model is a basic version without an ADC.
