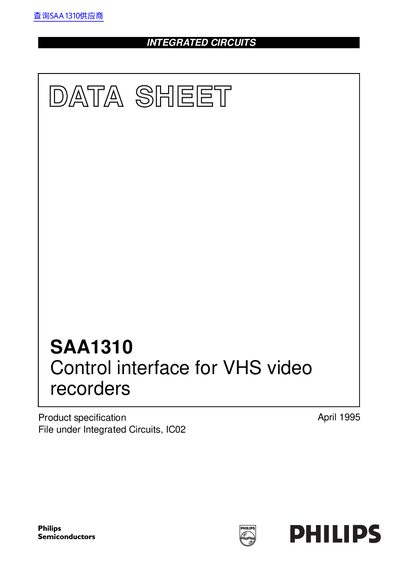

This document is a specification sheet for Philips SAA1310 control interface chip, which provides information such as the chip's functions, pin definitions, and package forms.
The SAA1310 is an integrated circuit designed to provide an interface between the tape control head in VHS deck electronics and the microprocessor. It also interfaces sensors in the deck mechanics with the microprocessor using four general-purpose comparators. The device supports both PAL and NTSC compatible modes and includes a power-on and power-failure indicator.
| Supply Voltage | 4.5 to 5.5 V |
|---|---|
| Supply Current (Read Mode) | 10 to 20 mA |
| Supply Current (Write Mode) | 13 to 24 mA |
| Output Driver Current | 100 mA |
| Comparator Output Voltage (LOW) | 0.4 V |
| Comparator Output Voltage (HIGH) | 4.6 V |
| Storage Temperature | -65 to +150 °C |
| Ambient Temperature | 0 to +70 °C |
The SAA1310 is compatible with both PAL and NTSC modes.
The maximum supply voltage is 5.5 V.
The circuit includes four general-purpose comparators for interfacing sensors and the microprocessor.
