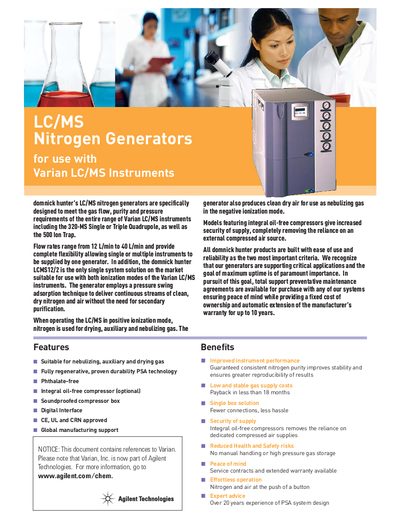

LC/MS Nitrogen Generators are used to supply nitrogen gas to LC/MS instruments. They use fully regenerative, proven durability PSA technology, and can provide stable nitrogen supply for nebulizing, auxiliary and drying gases. They can meet the gas flow, purity and pressure requirements of the entire range of Varian LC/MS instruments, including the 320-MS Single or Triple Quadrupole, as well as the 500 Ion Trap. Flow rates range from 12 L/min to 40 L/min, and can be used to supply a single or multiple instruments. In addition, the domnick hunter LCMS12/2 is the only single system solution on the market suitable for use with both ionization technologies.
Domnick Hunter's LC/MS nitrogen generators are designed to meet the gas flow, purity, and pressure requirements of Varian LC/MS instruments, including the 320-MS and 500 Ion Trap. These systems utilize pressure swing adsorption (PSA) technology to deliver continuous streams of clean, dry nitrogen and air without the need for secondary purification. Models featuring integral oil-free compressors offer increased security of supply by removing reliance on external compressed air sources.
The generators are suitable for use in both positive and negative ionization modes, providing nitrogen for drying, auxiliary, and nebulizing gas, as well as clean dry air for nebulizing gas in negative mode. The product line includes various flow rates ranging from 12 L/min to 40 L/min, with options for single or multiple instrument support.
| Flow Rates | 12 L/min to 40 L/min |
|---|---|
| Technology | Pressure swing adsorption |
| Output | Clean, dry nitrogen and air |
| Compressor Type | Integral oil-free compressor (optional) |
| Certifications | CE, UL and CRN approved |
The generators are designed for the 320-MS Single or Triple Quadrupole and the 500 Ion Trap.
No, they deliver clean, dry nitrogen and air without the need for secondary purification.
Yes, the LCMS12/2 is suitable for use with both ionization modes of the Varian LC/MS instruments.
