Introduces the flow rate range, recommended flow rate, sample preparation and injection information of PolarGel organic GPC columns

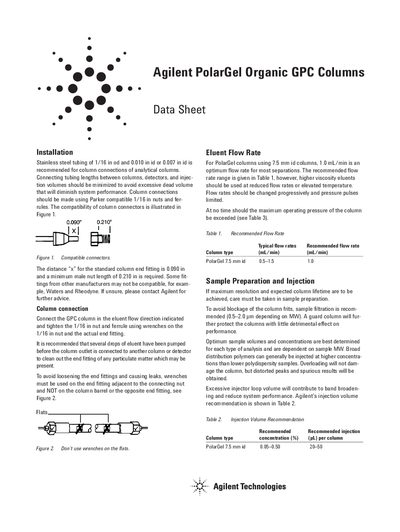

This document provides technical information for the Agilent PolarGel Organic GPC Columns. It covers recommended installation practices, including tubing specifications and connection compatibility to ensure optimal system performance.
The guide details operational parameters such as flow rates and sample preparation requirements. It also includes specific procedures for transferring columns between different eluents and a step-by-step maintenance section for replacing frits in case of blockage.
| Typical operating pressure in water | 450 psi (30 bar) |
|---|---|
| Maximum operating pressure | 2000 psi (140 bar) |
| Maximum operating temperature | 80 °C |
| Efficiency (H,0 at 20°C) | > 35,000 plates/m |
1.0 mL/min is an optimum flow rate for most separations.
Yes, provided care is taken regarding miscibility and viscosity during transfer.
The columns are covered by a 90-day warranty following delivery.
