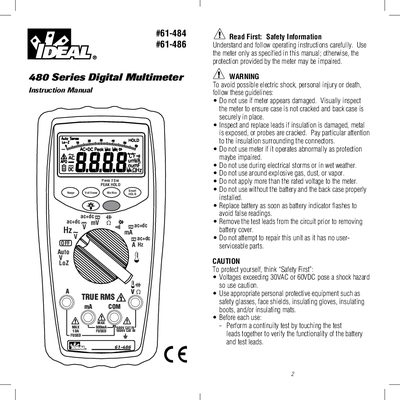

IDEAL 480 Series Digital Multimeter Instruction Manual

This is a manual for the 480 series digital multimeter

Brand: IDEAL
Category: multimeter
Document type: User Manual
Language: English
Pages: 36
File format: PDF
File size: 6 MB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: 60501B7432142148BCC270865778F24C
PDF: IDEAL 480 Series Digital Multimeter Instruction Manual PDF

About this manual

This manual provides instructions for the IDEAL 61-484 and 61-486 digital multimeters, which feature a 6000-count display, True RMS measurement, and various functions including AC/DC voltage, current, resistance, capacitance, frequency, and temperature (61-486 only). The device includes safety features such as CAT IV 600V/CAT III 1000V ratings and a non-contact voltage detector.

What's inside

Safety Information
Meter Description
Features
Making Basic Measurements
Measuring AC/DC Voltage
Measuring AC/DC Current
Measuring Resistance/Capacitance
Measuring Frequency
Measuring Temperature
Specifications

Specifications

Display	6000 counts
Safety Rating	CAT IV 600V/CAT III 1000V
Battery Life	150 hours
Auto Power Off	20 minutes
Weight	460g
Dimensions	94mm x 190mm x 48mm

Frequently asked questions

Does the 61-486 model measure temperature?

Yes, the 61-486 model includes a temperature measurement function using a K-type sensor.

What is the maximum voltage the meter can handle?

The maximum voltage applied to any terminal is 1000 Vac rms or 1000 Vdc rms.

How long does the auto power off feature last?

The meter automatically powers off after 20 minutes of inactivity.
