This document describes the features and characteristics of the BZV55 series voltage regulator diodes, including total power dissipation, tolerance series, working voltage range, and non-repetitive peak reverse power dissipation.

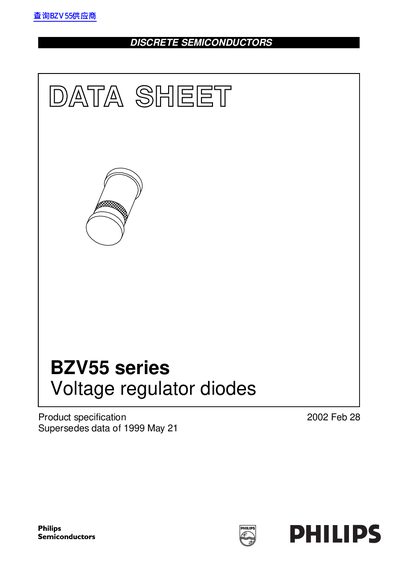

The document describes the BZV55 series of low-power voltage regulator diodes produced by Philips Semiconductors. These devices are available in hermetically sealed glass SOD80C surface-mount packages and feature nominal working voltages ranging from 2.4 V to 75 V. The series includes two tolerance options: ±2% (BZV55-B) and approximately ±5% (BZV55-C), covering 37 distinct types.
| Total power dissipation | max. 500 mW |
|---|---|
| Working voltage range | nom. 2.4 to 75 V |
| Non-repetitive peak reverse power dissipation | max. 40 W |
| Package type | SOD80C |
| Continuous forward current | 250 mA |
| Storage temperature | -65 to +200 °C |
The series includes the normalized E24 ±2% (BZV55-B) and approx.±5% (BZV55-C) tolerance range.
The diodes are available in small hermetically sealed glass SOD80C SMD packages.
