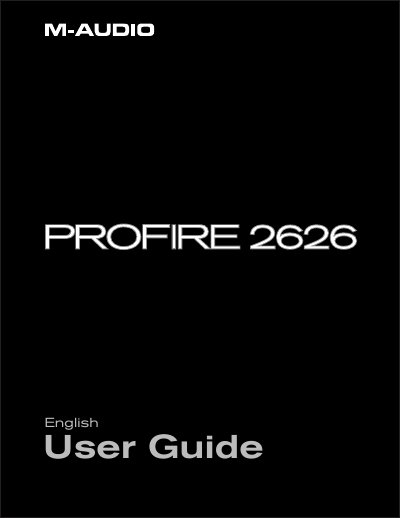

M-Audio ProFire 2626 FireWire Audio Interface User Guide

This is a sound card user manual, which mainly introduces the characteristics of the sound card and how to use it

Brand: M-Audio
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 51
File format: PDF
File size: 2.1 MB
Published: 04 July, 2012
Updated: 30 September, 2023
Model: ProFire 2626
MD5 checksum: C6E92F4966A9EA3B5C353C582C85BF74
PDF: M-Audio ProFire 2626 FireWire Audio Interface User Guide PDF

About this manual

The M-Audio ProFire 2626 is a FireWire-based digital recording interface featuring 26 inputs and 26 outputs. It supports up to 24-bit/192 kHz operation and includes eight XLR/TRS combo jacks with award-winning Octane preamps, two instrument inputs, and multiple digital connections for ADAT and S/PDIF. The interface also features a comprehensive 18x16 DSP mixer and router controlled via software.

What's inside

Introduction
Minimum System Requirements
Hardware Controls and Connectors
Architecture of ProFire 2626
Operation at High Sample Rates
Control Panel Application
Digital Clocking
MIDI
Troubleshooting
Warranty

Specifications

Audio Configuration	26-input, 26-output
Maximum Sample Rate	24-bit/192 kHz
Analog Inputs	Eight XLR/TRS combo jacks
Instrument Inputs	Two 1/4" (TS) front panel
Preamp Technology	Octane technology
Digital Inputs	Two optical, One coaxial
DSP Mixer	18-input, 16-output

Frequently asked questions

What is the maximum sample rate supported by the ProFire 2626?

The interface supports up to 24-bit/192 kHz operation.

Can the ProFire 2626 be used as a standalone preamplifier?

Yes, it can operate as an eight channel mic preamplifier, A/D, and D/A converter.

What digital formats does the ProFire 2626 support?

It supports coaxial (RCA) and optical S/PDIF formats as well as the multi-channel ADAT standard.
