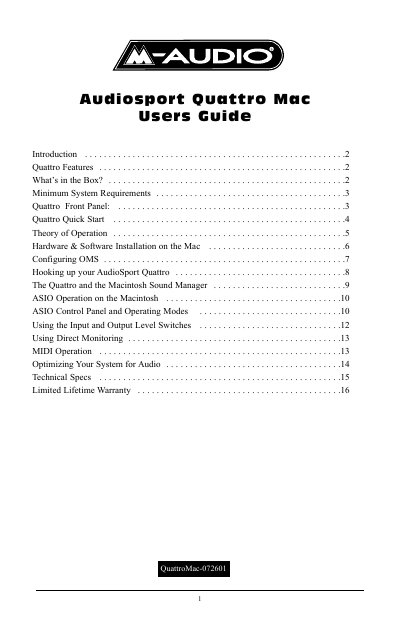

This manual introduces the features of AudioSport Quattro Mac, including product appearance, hardware and software installation, connection method, etc., suitable for Mac system
The M-Audio Audiosport Quattro is a USB audio interface designed for Macintosh computers, providing four analog audio inputs and four audio outputs. It supports high-performance 24-bit/96kHz audio and includes MIDI I/O capabilities. The device features switchable input and output levels for both +4dBu and -10dBV operation, as well as a direct monitor switch to bypass the computer for low-latency monitoring.
| Audio Inputs | Four (4) analog audio inputs on 1/4" TRS jacks |
|---|---|
| Audio Outputs | Four audio outputs |
| MIDI Ports | 1x1 MIDI port |
| Sampling Rate | 96kHz |
| Bit Depth | 24-bit |
| Dynamic Range (Input) | 101dB |
| Dynamic Range (Output) | 104dB |
| Power Supply | 9vAC 1,000mA wall-wart |
The minimum requirements are Mac OS 9.1, a Mac G3 with onboard USB, and 128 MB RAM for 96kHz operation.
Yes, Opcode's OMS (Open Music System) is required for MIDI operation on the Mac and must be installed prior to the Quattro drivers.
No, the Quattro requires all available USB bandwidth and must be plugged directly into the computer's USB port, not a hub.
