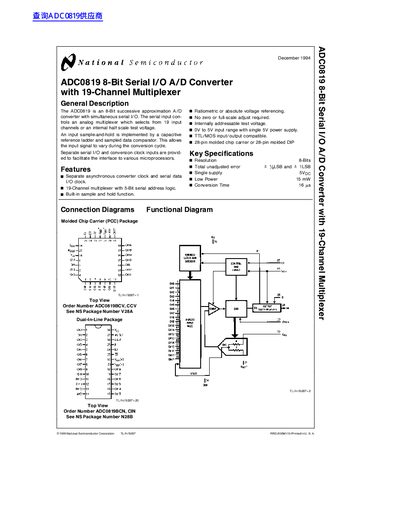

ADC0819 8-Bit Serial I/O A/D Converter with 19-Channel Multiplexer
The ADC0819 is an 8-bit successive approximation analog-to-digital converter featuring simultaneous serial I/O and a 19-channel analog multiplexer. It includes a built-in sample-and-hold function implemented by a capacitive reference ladder, allowing the input signal to vary during the conversion cycle. The device operates with a single 5V power supply and offers TTL/MOS input/output compatibility.
| Resolution | 8-Bits |
|---|---|
| Total Unadjusted Error | +/- 1% LSB and +/- 1 LSB |
| Supply Voltage | 5V |
| Power Consumption | 15 mW |
| Conversion Time | 16 ps |
| Number of Channels | 19 |
| Operating Temperature Range | -40°C to +85°C |
The ADC0819 has an 8-bit resolution.
Yes, it has a built-in sample-and-hold function implemented by a capacitive reference ladder.
The device supports an input range from 0V to 5V with a single 5V power supply.
