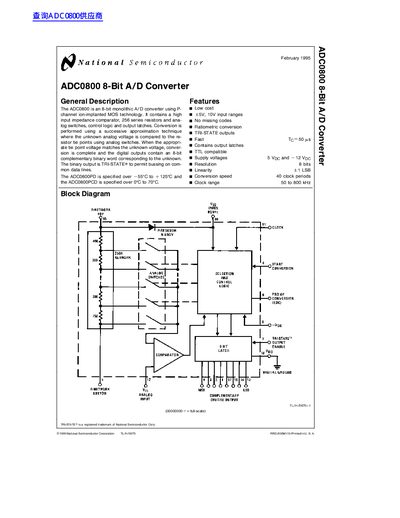

National Semiconductor ADC0800 8-Bit A/D Converter Datasheet

The ADC0800 is an 8-bit monolithic A/D converter using P-channel ion-implanted MOS technology. Its features include: low cost, 5V-10V input ranges, no missing codes, ratiometric conversion, fast TCe50ms, contains output latches, TTL compatible, supply voltages 5VDC and -12VDC, resolution 8 bits, linearity 1LSB, conversion speed 40 clock periods, clock range 50 to 800kHz.

Brand: National Semiconductor
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 10
File format: PDF
File size: 171 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: 18B40D717B9D21D752ED87606E0C440D
PDF: National Semiconductor ADC0800 8-Bit A/D Converter Datasheet PDF

About this manual

The ADC0800 is an 8-bit analog-to-digital (A/D) converter utilizing P-channel ion-implanted MOS technology. It features a high input impedance comparator and contains 256 series resistors along with analog switches, control logic, and output latches to perform conversions via successive approximation.

What's inside

General Description
Absolute Maximum Ratings
Operating Ratings
Electrical Characteristics
Timing Diagram
Application Hints

Specifications

Resolution	8 bits
Conversion Speed	40 clock periods
Clock Range (Industrial)	50 to 800 kHz
Non-Linearity	+1 LSB
Power Supply Current	20 mA

Frequently asked questions

What is the temperature range for the industrial version?

The ADCO800PD is specified over a temperature range of -55°C to +125°C.

What is the maximum clock frequency?

The maximum clock frequency is 800 kHz for temperatures between 0°C and +70°C.
