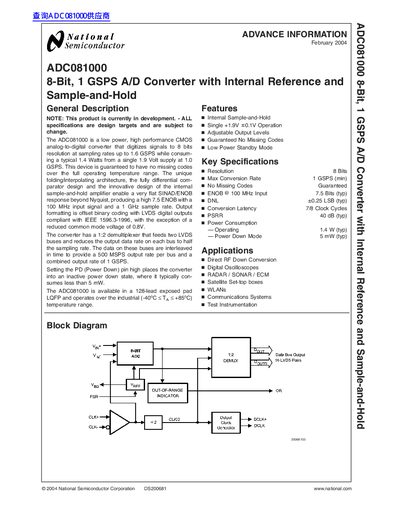

The ADC081000 is a low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sampling rates up to 1.6 GSPS while consuming a typical 1.4 Watts from a single 1.9 Volt supply at 1.0 GSPS.
The ADC081000 is a low power, high performance CMOS analog-to-digital converter that digitizes signals to 8 bits resolution at sampling rates up to 1.6 GSPS. It features a unique folding/interpolating architecture and fully differential comparator design to ensure no missing codes over the full operating temperature range.
| Resolution | 8 Bits |
|---|---|
| Max Conversion Rate | 1 GSPS (min) |
| ENOB @ 100 MHz Input | 7.5 Bits (typ) |
| DNL | +0.25 LSB (typ) |
| Conversion Latency | 7/8 Clock Cycles |
| PSRR | 40 dB (typ) |
| Power Down Mode Consumption | 5 mW (typ) |
| Operating Temperature Range | -40°C < T, < +85°C |
The device can sample signals at rates up to 1.6 GSPS.
It consumes a typical 1.4 Watts from a single 1.9 Volt supply at 1.0 GSPS.
The ADC081000 digitizes signals to 8 bits resolution.
