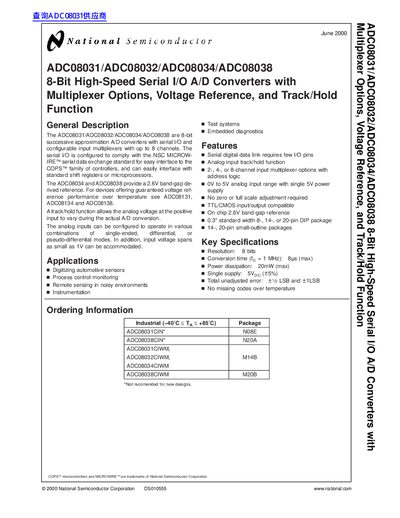

ADC08031/ADC08032/ADC08034/ADC08038 8-Bit High-Speed Serial I/O A/D Converters with Multiplexer Options, Voltage Reference, and Track/Hold Function
The ADC08031/ADC08032/ADC08034/ADC08038 are 8-bit successive approximation A/D converters featuring serial I/O compatible with the NSC MICROWIRE standard. These devices include configurable input multiplexers with up to 8 channels and an analog input track/hold function, allowing the analog voltage to vary during conversion. The ADG08034 and ADC08038 variants provide an on-chip 2.6V band-gap derived voltage reference.
| Resolution | 8 bits |
|---|---|
| Power dissipation | 20mW (max) |
| Supply voltage | 4.5V to 6.3V |
The resolution is 8 bits.
The maximum conversion time is 8 microseconds when the clock frequency is 1 MHz.
The maximum power dissipation is 20 milliwatts.
The minimum clock frequency is 10 kHz.
