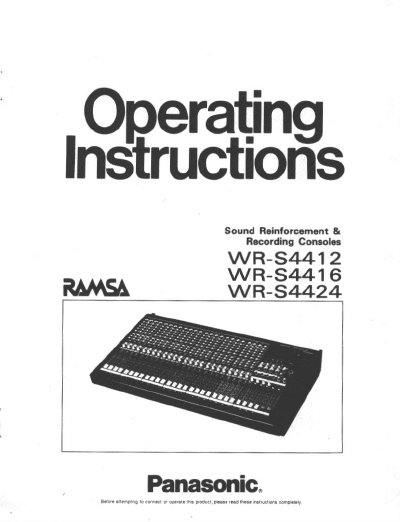

This manual provides operating instructions for the RAMSA WR-S4400 Series Sound Reinforcement and Recording Consoles. The series is available in three sizes: the 12-input WR-S4412, 16-input WR-S4416, and 24-input WR-S4424. These consoles are designed based on the quality and technology of RAMSA's high-end professional mixing consoles.
| Input Channels | 12, 16, or 24 inputs |
|---|---|
| Head Amplifier Trim Range | 64 dB |
| Input Level Control (A-input) | -60 dB to +4 dB |
| Input Level Control (B-input) | -54 dB to +10 dB |
| Phantom Power | 48V |
| Fader Type | High-precision long-stroke carbon fader |
| Channel Strip Width | 29 mm |
| Talk Back Input Level | -50 dB to -20 dB |
Turn on the phantom power switch only after a connector has been inserted into that channel to prevent shocks and avoid damaging clicking and popping sounds.
The Head Amplifier has a continuously variable trim range of 64 dB, enabling it to accept any Mic or Line source with a nominal level between —60 dB and +4 dB.
