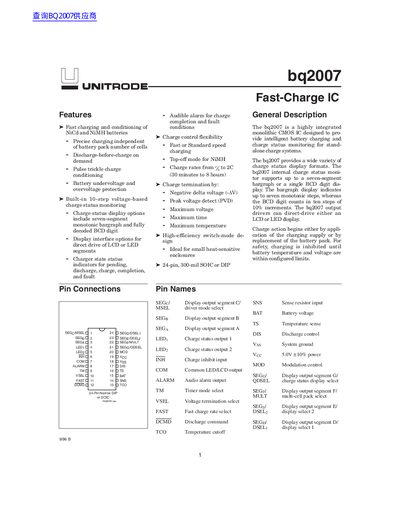

bq2007 is a highly integrated monolithic CMOS IC designed to provide intelligent battery charging and charge status monitoring for stand-alone charge systems.
The bq2007 is a fast-charge IC designed to provide intelligent battery charging and charge status monitoring for standalone charge systems. It supports NiCd and NiMH batteries with features such as precise charging independent of the number of cells, discharge-before-charge on demand, and pulse trickle charge conditioning. The device includes built-in 10-step voltage-based charge status monitoring with display options for seven-segment monotonic bargraphs or fully decoded BCD digits, capable of driving LCD or LED segments directly.
| Battery Types | NiCd and NiMH batteries |
|---|---|
| Charge Status Monitoring | 10-step voltage-based |
| Display Options | Seven-segment monotonic bargraph or BCD digit |
| Display Interface | Direct drive of LCD or LED segments |
| Package Options | 24-pin, 300-mil SOIC or DIP |
| Charge Termination Methods | Negative delta voltage, Peak voltage detect, Maximum voltage, Maximum time |
The bq2007 supports fast charging and conditioning of NiCd and NiMH batteries.
It uses a built-in 10-step voltage-based monitor with display options for a seven-segment monotonic bargraph or a fully decoded BCD digit.
Charging can be terminated by negative delta voltage, peak voltage detect, maximum voltage, maximum time, or maximum temperature.
