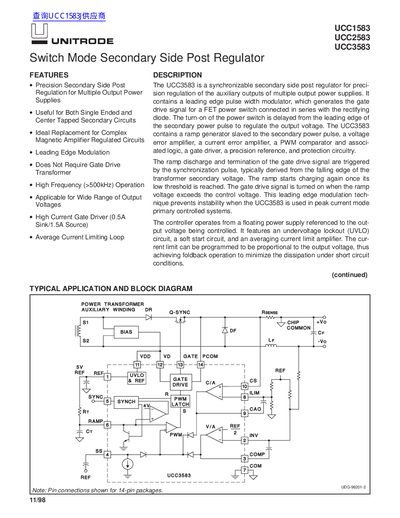

The document describes the UCC1583, UCC2583, and UCC3583 as synchronizable secondary side post regulators designed for precision regulation of auxiliary outputs in multiple output power supplies. These controllers utilize a leading edge pulse width modulator to generate gate drive signals for FET power switches connected in series with rectifying diodes.
| Maximum Input Operating Frequency | 500 kHz |
|---|---|
| Ramp Frequency, Free Running | 95 to 105 kHz |
| High Threshold Voltage (RAMP) | 3.75V to 4.25V |
| Supply Clamp Voltage | 13V to 15V |
| Reference Voltage (UCC3583) | 4.925V to 5.075V |
| Gate Driver Sink/Source Current | 0.5A Sink / 1.5A Source |
The specifications apply for a temperature range of -40°C to +85°C.
The specifications apply for a temperature range of 0°C to +70°C.
The minimum output duty cycle is 9% of the input pulse width.
