RR-US321 RR-US320 RR-QR120 user manual, introduces the maintenance, battery life, specifications and other information of the equipment

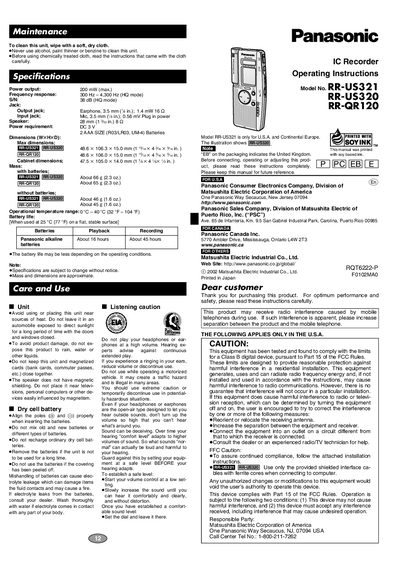

This manual provides operating instructions for the Panasonic RR-US320 IC Recorder, including models RR-US321 and RR-QR120. It details the setup process, such as inserting batteries and setting the time, as well as the functions of the control buttons and jacks.
| Power output | 200 mW (max.) |
|---|---|
| Frequency response | 300 Hz — 4,300 Hz (HQ mode) |
| S/N | 38 dB (HQ mode) |
| Dimensions (WxHxD) | 48.6 x 106.3 x 15.0 mm (Max dimensions) |
| Mass with batteries | About 66 g |
| Operational temperature range | 0 °C — 40 °C (32 °F — 104 °F) |
The unit requires two AAA size (R03/LR03, UM-4) batteries.
The unit preserves all settings for thirty seconds after battery removal; settings revert to factory settings after this time.
