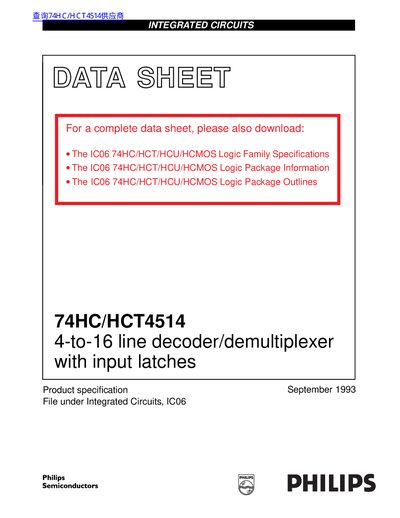

The 74HC/HCT4514 is a 4-to-16 line decoder/demultiplexer with input latches, non-inverting outputs, standard output capability, and MSI ICC category.
The Philips 74HC/HCT4514 is a high-speed Si-gate CMOS device functioning as a 4-to-16 line decoder/demultiplexer. It features four binary weighted address inputs (A0 to A3), an active HIGH latch enable input (LE), and an active LOW enable input (E). The device includes sixteen mutually exclusive active HIGH outputs (Q0 to Q15) that are pin compatible with the '4514' of the '4000B' series.
| Input capacitance | 3.5 pF |
|---|---|
| Power dissipation capacitance per package | 44 pF (HC) |
| Operating temperature range (74HC) | -40 to +85 °C |
The device operates from -40 to +125 °C.
It has four binary weighted address inputs (A0 to A3).
