74HC/HCT86 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT86 provide the EXCLUSIVE−OR function.

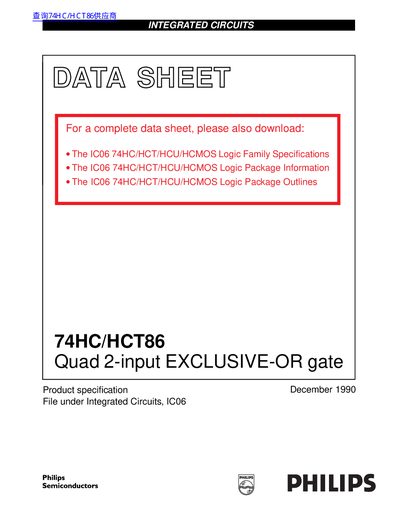

This document is a product specification datasheet for the Philips 74HC/HCT86, which are high-speed Si-gate CMOS devices providing an EXCLUSIVE-OR function. The chips are specified in compliance with JEDEC standard no. 7A and are pin compatible with low power Schottky TTL (LSTTL).
| Output capability | standard |
|---|---|
| Icc category | SSI |
| Input capacitance (typical) | 3.5 pF |
| Power dissipation capacitance per gate | 30 pF |
The devices are high-speed Si-gate CMOS.
Yes, they are pin compatible with low power Schottky TTL (LSTTL).
