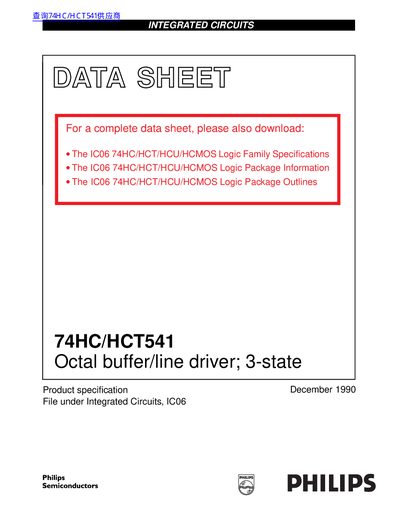

This document describes an octal buffer/line driver called 74HC/HCT541, which has 3-state outputs. Its features include non-inverting outputs, strong output capability, and belongs to the MSI category.
The document is a product specification sheet for the 74HC/HCT541 integrated circuit, an octal non-inverting buffer/line driver featuring 3-state outputs. These high-speed Si-gate CMOS devices are pin compatible with low power Schottky TTL (LSTTL) and comply with JEDEC standard no. 7A.
| Power Dissipation Capacitance per Buffer (HCT) | 39 pF |
|---|---|
| Logic Category | MSI |
The 3-state outputs are controlled by the output enable inputs OE1 and OE2.
The device contains eight identical buffer/line driver circuits that operate as an octal unit.
