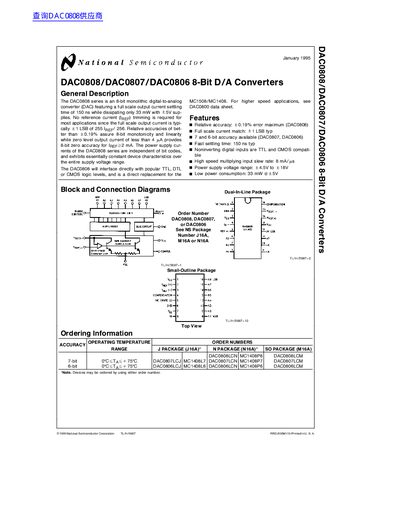

The document introduces the DAC0808 series, an 8-bit monolithic digital-to-analog converter (DAC), which features a full scale output current settling time of 150 ns, power consumption of only 33 mW, and a power supply voltage range of -4.5V to -18V.
The DAC0808 series is an 8-bit monolithic digital-to-analog converter (DAC) featuring a full scale output current settling time of 150 ns while dissipating only 33 mW with +5V supplies. The devices interface directly with popular TTL, DTL or CMOS logic levels and serve as a direct replacement for the MC1508/MC1408.
| Power Supply Voltage Range | +4.5V to +18V |
|---|---|
| Low Power Consumption | 33 mW @+5V |
The full scale output current settling time is 150 ns.
Yes, it interfaces directly with popular TTL, DTL or CMOS logic levels.
The maximum power dissipation is 1000 mW.
