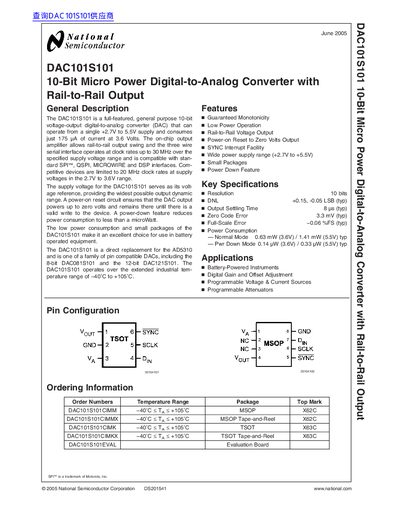

The DAC101S101 is a full-featured, general purpose 10-bit voltage-output digital-to-analog converter (DAC) that can operate from a single +2.7V to 5.5V supply and consumes just 175 µA of current at 3.6 Volts.
The DAC101S101 is a full-featured, general purpose 10-bit voltage-output digital-to-analog converter (DAC) designed for low power applications. It operates from a single +2.7V to 5.5V supply and features a rail-to-rail output swing enabled by an on-chip output amplifier. The device includes a three-wire serial interface compatible with standard SPI, QSPI, MICROWIRE, and DSP interfaces, operating at clock rates up to 30 MHz.
| Resolution | 10 bits |
|---|---|
| Supply Voltage Range | +2.7V to +5.5V |
| Operating Temperature Range | -40°C to +105°C |
| Maximum Clock Frequency | 30 MHz |
| Power Consumption (Normal Mode, 3.6V) | 0.63 mW |
| Power Consumption (Power Down Mode, 3.6V) | 0.14 µW |
| Output Settling Time | 8 µs (typ) |
| Zero Code Error | 3.3 mV (typ) |
The three-wire serial interface operates at clock rates up to 30 MHz over the specified supply voltage range.
Yes, the three-wire serial interface is compatible with standard SPI, QSPI, MICROWIRE, and DSP interfaces.
