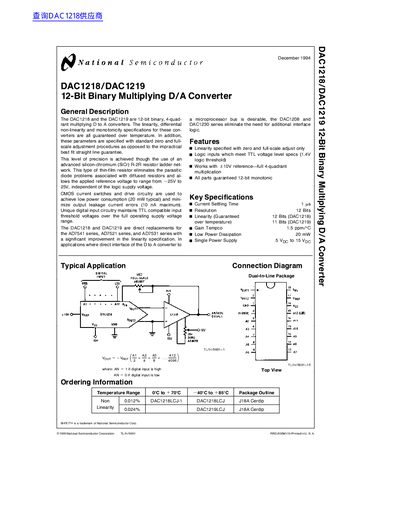

The DAC1218 and DAC1219 are 12-bit binary 4-quadrant multiplying D to A converters. The linearity, differential non-linearity, and monotonicity specifications for these converters are all guaranteed over temperature. In addition, these parameters are specified with standard zero and full-scale adjustment procedures as opposed to the impractical best fit straight line guarantee. This level of precision is achieved though the use of an advanced silicon-chromium (SiCr) R-2R resistor ladder network. This type of thin-film resistor eliminates the parasitic diode problems associated with diffused resistors and allows the applied reference voltage to range from -25V to 25V, independent of the logic supply voltage. CMOS current switches and drive circuitry are used to achieve low power consumption (20 mW typical) and minimize output leakage current errors (10 nA maximum). Unique digital input circuitry maintains TTL compatible input threshold voltages over the full operating supply voltage range. The DAC1218 and DAC1219 are direct replacements for the AD7541 series, AD7521 series, and AD7531 series with a significant improvement in the linearity specification. In applications where direct interface of the D to A converter to a microprocessor bus is desirable, the DAC1208 and DAC1230 series eliminate the need for additional components.
The DAC1218 and DAC1219 are 12-bit binary, 4-quadrant multiplying D-to-A converters designed for high precision applications. They utilize an advanced silicon-chromium (SiCr) R-2R resistor ladder network to ensure linearity, differential non-linearity, and monotonicity specifications are guaranteed over temperature. The devices feature low power consumption (20 mW typical) and minimize output leakage current errors.
| Resolution | 12 Bits |
|---|---|
| Linearity Error (DAC1218) | 0.018% of FSR |
| Linearity Error (DAC1219) | 0.024% of FSR |
| Monotonicity | 12 Bits |
| Gain Tempco | 1.5 ppm/°C |
| Power Dissipation | 20 mW |
| Current Settling Time | 1 ms |
| Supply Voltage Range | 5 V DC to 15 V DC |
Both devices have a 12-bit resolution.
The linearity error for the DAC1218 is guaranteed to be 0.018% of FSR.
The maximum output leakage current is 10 nA.
