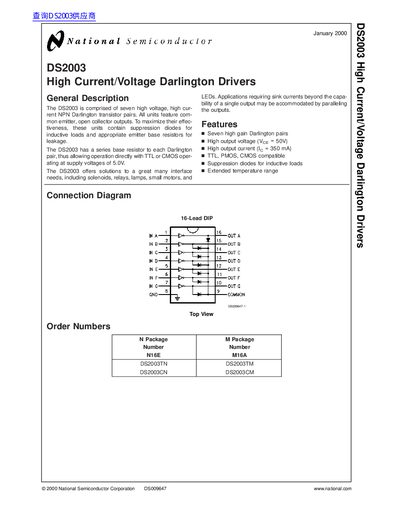

The DS2003 is comprised of seven high voltage, high current NPN Darlington transistor pairs. All units feature common emitter, open collector outputs. To maximize their effectiveness, these units contain suppression diodes for inductive loads and appropriate emitter base resistors for leakage. The DS2003 offers solutions to a great many interface needs, including solenoids, relays, lamps, small motors, and LEDs. Applications requiring sink currents beyond the capability of a single output may be accommodated by paralleling the outputs.
The DS2003 is a seven-channel high voltage, high current NPN Darlington transistor driver featuring common emitter, open collector outputs. It includes suppression diodes for inductive loads and series base resistors allowing direct operation with TTL or CMOS at 5.0V supply voltages. The device is designed to interface with solenoids, relays, lamps, small motors, and LEDs.
| Output Voltage | 50V |
|---|---|
| Output Current | 350 mA |
| Operating Temperature Range | -40°C to +105°C |
| Package Type | 16-Lead DIP |
Yes, the device features a series base resistor to each Darlington pair, thus allowing operation directly with TTL or CMOS operating at supply voltages of 5.0V.
The absolute maximum rating for continuous collector current is 500 mA.
N16E and M16A packages operate from -40°C to +105°C, while N16E and M16A ceramic packages operate from 0°C to +85°C.
The absolute maximum output voltage is 55V.
