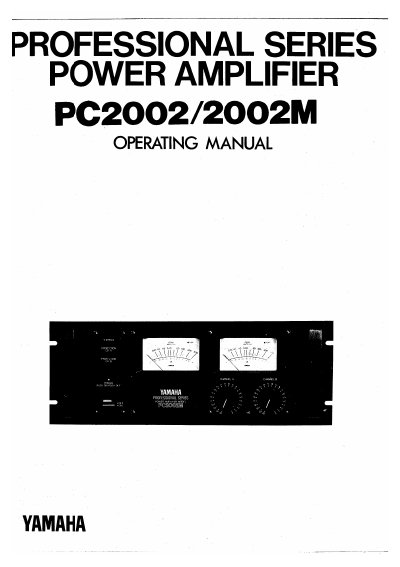

This manual provides instructions for the Yamaha PC2002 and PC2002M professional series power amplifiers. It details system design parameters, installation techniques, and operational procedures, noting that the PC2002 lacks the peak reading meters found on the PC2002M model. The document emphasizes that performance depends on system design and installation alongside the amplifier's capabilities.
| Power Output (Stereo, 8 ohms) | 240W + 240W |
|---|---|
| Power Output (Mono, 16 ohms) | 480W |
| Frequency Response | 10 Hz to 50 kHz |
| Total Harmonic Distortion (Stereo, 8 ohms, 120W) | Less than 0.003% |
| Damping Factor (8 Ohm) | Greater than 350 |
| S/N Ratio (Input shorted at 1kHz) | 110 dB |
| Dimensions (Wx DxH) | 480 x 413 x 183 mm |
| Weight (PC2002M) | 20.5 kg (45 pounds) |
The PC2002 is identical to the PC2002M except that it does not have Peak Reading Meters.
The speaker impedance must be between 16 and 32 ohms for mono mode operation.
The Thermal Indicator lights if the surface temperature of the main heat sink exceeds 85 + 5 degrees centigrade.
