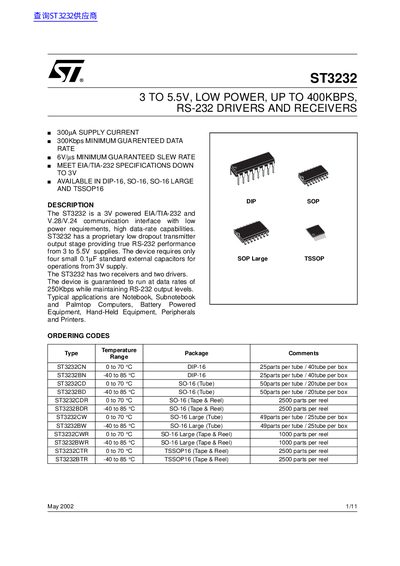

The ST3232 is a 3V powered EIA/TIA-232 and V.28/V.24 communication interface with low power requirements, high data-rate capabilities. ST3232 has a proprietary low dropout transmitter output stage providing true RS-232 performance from 3 to 5.5V supplies. The device requires only four small 0.1µF standard external capacitors for operations from 3V supply. The ST3232 has two receivers and two drivers. The device is guaranteed to run at data rates of 250Kbps while maintaining RS-232 output levels. Typical applications are Notebook, Subnotebook and Palmtop Computers, Battery Powered Equipment, Hand-Held Equipment, Peripherals and Printers.
The ST3232 is a 3V powered EIA/TIA-232 and V.28/V.24 communication interface designed for low power requirements and high data-rate capabilities. It features a proprietary low dropout transmitter output stage that provides true RS-232 performance from 3 to 5.5V supplies, requiring only four small 0.1µF standard external capacitors for operation from a 3V supply.
The device includes two receivers and two drivers, guaranteeing operation at data rates of 250Kbps while maintaining RS-232 output levels. It is available in DIP-16, SO-16, SO-16 Large, and TSSOP 16 packages. Typical applications include Notebook, Subnotebook, and Palmtop Computers, as well as battery-powered and hand-held equipment.
| Supply Voltage Range | 3 to 5.5V |
|---|---|
| Maximum Data Rate | 400 Kbps |
| Minimum Guaranteed Data Rate | 300 Kbps |
| Minimum Guaranteed Slew Rate | 6 V/us |
| Receiver Input Voltage Range | +/- 25 V |
| Transmitter Output Resistance | 300 Ohm |
| Transmitter Output Short Circuit Current | +/- 60 mA |
| Data Transfer Rate (Typical) | 400 Kbps |
The device operates from a supply voltage of 3V to 5.5V.
The device is guaranteed to run at a minimum data rate of 300Kbps.
The device requires only four small 0.1µF standard external capacitors for operation from a 3V supply.
Typical applications include Notebook, Subnotebook, and Palmtop Computers, as well as battery-powered and hand-held equipment.
