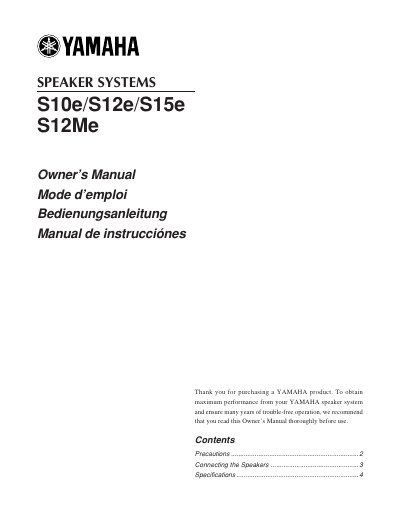

Yamaha S10e/S12e/S15e/S12Me Speaker Systems Owner's Manual

This document is the owner’s manual of YAMAHA speaker system S10e/S12e/S15e S12Me

Brand: Yamaha
Document type: User Manual
Language: English
Pages: 4
File format: PDF
File size: 87 KB
Published: 13 June, 2012
Updated: 01 October, 2023
Models: S12, S10e
MD5 checksum: A5631C9E48E3EA1ED2C761331D1619CD
PDF: Yamaha S10e/S12e/S15e/S12Me Speaker Systems Owner's Manual PDF

About this manual

This document is the Owner's Manual for the Yamaha S10e, S12e, S15e, and S12Me active loudspeaker systems. It covers essential safety precautions regarding heat, humidity, and power-up sequences to prevent damage to the speakers or connected equipment. The guide details how to properly connect the speakers using 1/4" phone jacks, including instructions for daisy-chaining multiple units.

What's inside

Precautions
Connecting the Speakers
Specifications

Specifications

Nominal Impedance	8Ω
Frequency Response (S10e)	65 Hz to 14 kHz
Power Capacity NOISE (S12e/S12Me)	125 W
Dimensions (S15e)	486 x 667 x 367 mm

Frequently asked questions

What is the recommended power-up sequence for the system?

Always turn the power amp on last to avoid loud, damaging pops that can damage speakers.

Can multiple speaker systems be connected together?

Yes, they can be daisy-chained because the input terminals are internally connected in parallel.

What type of cable should be used for connections?

Only unshielded speaker cable with stranded conductors should be used.
