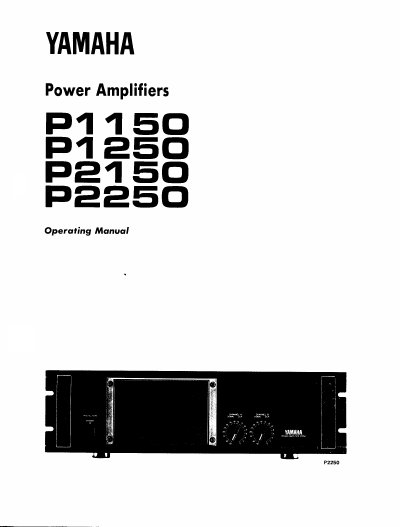

Yamaha P1150/P1250/P2150/P2250 Power Amplifier User Manual

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 44
File format: PDF
File size: 4 MB
Published: 13 June, 2012
Updated: 13 June, 2012
MD5 checksum: 8CC729B7D5F31B13A053FE3CA340F3E7
PDF: Yamaha P1150/P1250/P2150/P2250 Power Amplifier User Manual PDF

About this manual

This manual describes four professional power amplifiers: the single-channel P1150 and P1250, and the dual-channel P2150 and P2250. These models share similar packaging and circuitry but differ in power output per channel. The P1150 is rated at 100 watts into 8 ohms, while the P1250 is rated at 170 watts into 8 ohms. The dual-channel versions deliver the same power per channel and feature a rear panel switch for bridged mono operation.

What's inside

Introduction
Brief Operating Instructions
Front Panel
Rear Panel
Amplifier Operation
Installation
Input Connections
Output Connections
More Information on Sound System Wiring
Specifications

Specifications

P1150 Power Output (8 ohms)	100 watts
P1150 Power Output (4 ohms)	150 watts
P1250 Power Output (8 ohms)	170 watts
P1250 Power Output (4 ohms)	250 watts
P2250 Bridged Mono Power (4 ohms)	500 watts

Frequently asked questions

What is the power output of the P1150 into 8 ohms?

The P1150 is rated at 100 watts into 8 ohms.

How does the P2150 operate in bridged mono mode?

In bridged mono mode, the P2150 delivers 300 watts into 8 ohms.
