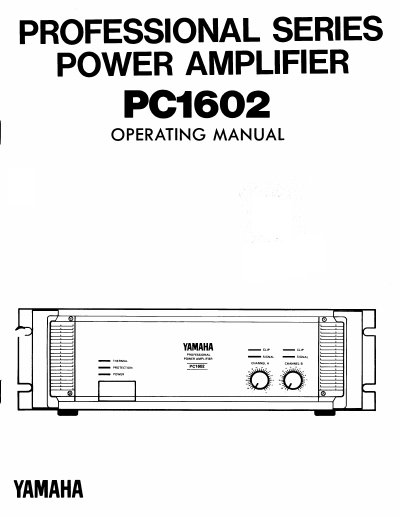

The Yamaha PC1602 is a high-power sound amplifier designed for professional applications such as rock and disco sound systems. It delivers 160 watts into 8 ohms per channel with an ultra-low distortion rate of less than 0.007% THD at half rated power. The unit features sophisticated design elements, including input attenuators, protection circuits, and indicators for thermal status, clipping, and signal presence.
| Power Output (Mono, 8 ohms) | 240 W |
|---|---|
| Frequency Response | 10 Hz to 50 kHz |
| Total Harmonic Distortion (Stereo, 8 ohms) | Less than 0.007% |
| Damping Factor | Greater than 200 |
| Dimensions (WxDxH) | 480 x 431.3 x 140 mm |
The protection indicator lights for approximately 6+2 seconds after power is switched on.
The amplifier is clipping due to excessive input signal levels because output distortion exceeds approximately 1%.
Yes, it is recommended that fan cooling be installed in a rack-mounted installation to prevent damage from excessive temperature conditions.
