This document is the packaging information of JM38510/00401BCA, including product status, package type, package drawing, pin count, package quantity, eco plan, lead/ball finish, MSL and peak temperature.

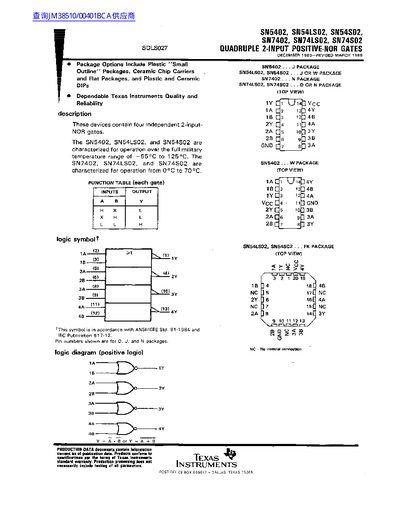

The document covers the SN5402, SN54LS02, SN54S02, SN7402, SN74LS02, and SN74S02 devices. These components contain four independent 2-input positive-NOR gates designed for digital logic applications.
| Logic Function | Positive-NOR |
|---|
The SN5402, SN54LS02, and SN54S02 are characterized for operation over the full military temperature range of —55°C to 125°C.
