STP5NK60Z is a N-MOSFET produced by ST company. It has 650V voltage resistance, 1.2Ω on-resistance and 5A maximum current. It can be used in high current and high frequency switching circuits.

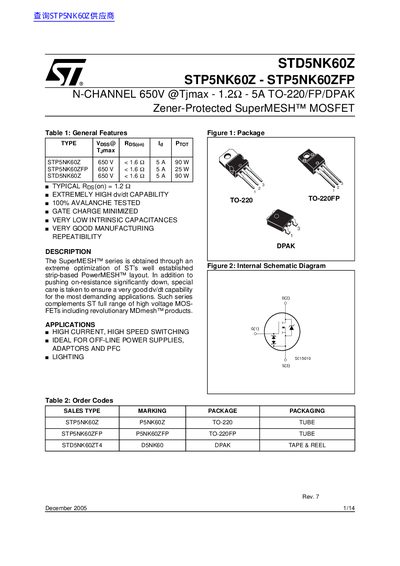

This document is a technical datasheet for the STMicroelectronics SuperMESH™ series of N-channel 650V MOSFETs. The specific models covered are the STD5NK60Z, STP5NK60Z, and STP5NK60ZFP, which feature Zener-protected gate-source terminals to enhance ESD capability and absorb voltage transients.
The devices utilize an optimized strip-based PowerMESH™ layout designed for high current, high-speed switching applications. They are suitable for off-line power supplies, adapters, PFC circuits, and lighting systems. The datasheet provides detailed electrical characteristics, safe operating areas, thermal data, and application circuit diagrams for TO-220, TO-220FP, and DPAK packages.
They include built-in back-to-back Zener diodes designed to enhance ESD capability and safely absorb voltage transients applied from gate to source.
They are ideal for off-line power supplies, adapters, PFC circuits, and lighting applications requiring high current and high-speed switching.
The devices are available in TO-220, TO-220FP, and DPAK packages.
