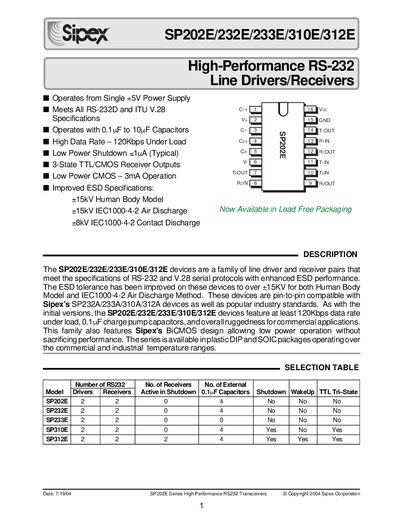

The SP202E/232E/233E/310E/312E devices are a family of line driver and receiver pairs that meet the specifications of RS-232 and V.28 serial protocols with enhanced ESD performance.
The SP202E family (including SP232E, SP233E, SP310E, and SP312E) are high‑performance RS‑232 line driver and receiver pairs that meet EIA RS‑232 and ITU V.28 specifications. They operate from a single +5 V supply, provide up to 120 kbps data rate under load, and feature a BiCMOS design for low power consumption while maintaining ruggedness for commercial applications.
Key features include enhanced ESD tolerance (≥+15 kV for both Human Body Model and IEC 1000‑4‑2 air discharge), internal charge‑pump voltage converters, optional shutdown and wake‑up functions, and a variety of package options such as 18‑pin PDIP, 16‑pin WSOIC, and 20‑pin SSOP. The datasheet also provides detailed electrical characteristics, pinouts, and ordering information.
| Operating Voltage | Single +5 V |
|---|---|
| Maximum Data Rate | 120 kbps (typical), 240 kbps (max) |
| Power‑down Current | <1 µA (typical) |
| No‑load Supply Current | 3‑5 mA |
| ESD Tolerance | ≥+15 kV (Human Body Model and IEC 1000‑4‑2) |
| Package (example) | 18‑pin PDIP |
The device operates from a single +5 V power supply.
The series supports up to 120 kbps under load, with a maximum rating of 240 kbps under specified conditions.
It tolerates at least +15 kV for both the Human Body Model and IEC 1000‑4‑2 air‑discharge tests.
The family is offered in 18‑pin PDIP, 16‑pin WSOIC, 20‑pin SSOP, and other JEDEC‑standard packages.
