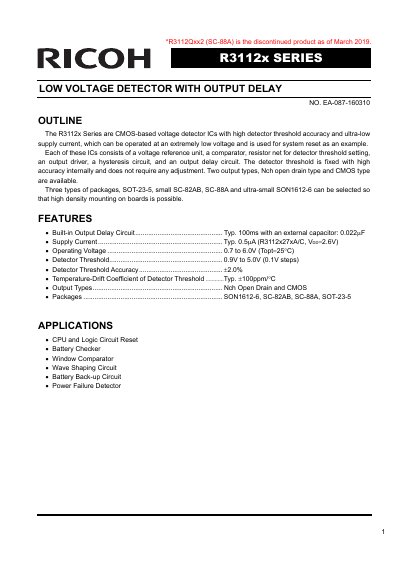

This datasheet details the Renesas R3112x series CMOS-based voltage detector ICs featuring high accuracy, ultra-low supply current, and an output delay…
The R3112x Series are CMOS-based voltage detector integrated circuits designed with high detector threshold accuracy and ultra-low supply current. They operate at extremely low voltages and include internal components such as a voltage reference unit, comparator, resistor network, output driver, hysteresis circuit, and an output delay circuit. The detector threshold is fixed internally with high accuracy, eliminating the need for external adjustment.
| Supply Current (Typ) | 0.5 µA |
|---|---|
| Operating Voltage Range | 0.7 to 6.0V |
| Detector Threshold Range | 0.9V to 5.0V |
| Detector Threshold Accuracy | ±2.0% |
| Temperature-Drift Coefficient | Typ. ±100ppm/°C |
| Output Types | Nch Open Drain and CMOS |
| Available Packages | SON1612-6, SC-82AB, SC-88A, SOT-23-5 |
| Operating Temperature Range | -40 to 85 °C |
The typical supply current is 0.5 µA when VDD is 2.6V.
No, the detector threshold is fixed with high accuracy internally and does not require any adjustment.
Supported applications include CPU and Logic Circuit Reset, Battery Checker, Window Comparator, Wave Shaping Circuit, and Battery Back-up Circuit.
No, the R3112Qxx2 (SC-88A) is a discontinued product as of March 2019.
