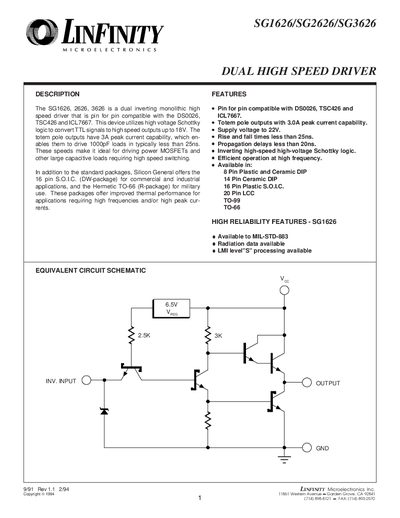

The document describes the features and characteristics of the SG1626/SG2626/SG3626 products, including compatibility with other models, output capability, operating voltage range, rise and fall times, propagation delays, etc. The product utilizes high voltage Schottky logic to convert TTL signals to high-speed outputs, suitable for driving power MOSFETs and other large capacitive loads requiring high-speed switching.
The SG1626, SG2626, and SG3626 are dual inverting monolithic high-speed drivers designed to convert TTL signals to high-speed outputs up to 18V. These devices utilize high voltage Schottky logic with totem pole outputs capable of 3.0A peak current, enabling them to drive 1000pF loads in typically less than 25ns. They are ideal for driving power MOSFETs and other large capacitive loads requiring high-speed switching.
| Peak Output Current | 3.0A |
|---|---|
| Frequency Range | DC to 1.5MHz |
| Propagation Delay (Typical) | 20ns |
The device has a peak current capability of 3.0A.
Each output is rated for a peak pulse current of +3.0A.
