This file is a user manual for a certain brand and model product, which introduces the characteristics of the product.

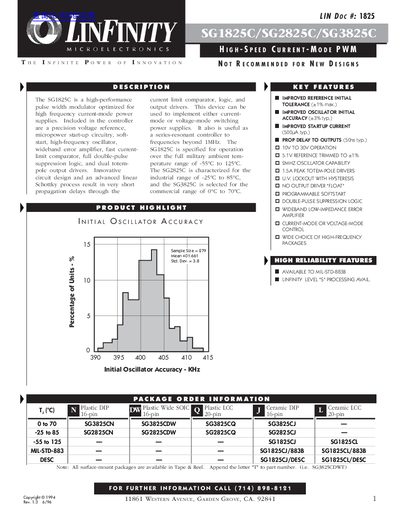

The SG1825C family (SG1825C, SG2825C, SG3825C) are high‑performance current‑limit comparators and PWM controllers designed for current‑mode power supplies and oscillator applications. They feature a wide‑band low‑impedance error amplifier, programmable soft‑start, and a range of package options.
Key specifications include a 10‑30 V supply range, up to 1.5 A peak output current, and an oscillator frequency that can be programmed from 4 kHz to 1.5 MHz. The document also provides detailed pin‑out diagrams, thermal data, absolute maximum ratings, and application circuits for layout and bypassing.
| Supply Voltage Range | 10‑30 V |
|---|---|
| Continuous Output Current | 200 mA |
| Pulse Output Current (500 ns) | 1.0 A |
| Oscillator Frequency Range | 4‑1500 kHz |
| Reference Voltage | 5.1 V (trimmed +1%) |
The recommended supply voltage range is 10 V to 30 V.
The device can deliver a continuous output current of 200 mA.
The oscillator can be programmed from 4 kHz up to 1500 kHz.
